laser nameplate name tag pet ID tags dog tag laser engraving machine

FOB Reference Price:Get Latest Price
$800.00 - $6,200.00 / Sets | 1 Set/Sets (Min. Order)
Power(W):
20W/30W/50W
Model Number:
CX-Q100
Lead Time:
Quantity(Sets) 1 - 48 >48
Est. Time(days) 10 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
After-sales Service Provided:
Online support, Field maintenance and repair service, Video technical support, Overseas service center available
Laser Type:
Fiber Laser
Working Accuracy:
0.002mm
Graphic Format Supported:
AI, BMP, DST, DWG, DXF, DXP, PLT
Application:
Laser Marking
Applicable Industries:
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Energy & Mining, Advertising Company
Condition:
New
CNC or Not:
Yes
Cooling Mode:
Air Cooling
Control Software:
Ezcad
Place of Origin:
Hubei, China
Brand Name:
CH LASER
Certification:
CE, ISO, RoHS
Warranty:
2 Years
Laser Source Brand:
RAYCUS
Laser Marking Machine Marking Speed:
7000m/s
Laser Marking Machine Marking Depth:
0.01-0.5mm
Laser Marking Machine Marking Area:
100mm*100mm
Laser Marking Machine Adjustable Area:
170mm*170mm
Laser Marking Machine Accuracy:
0.02mm
Laser Marking Machine Min.Linear Width:
0.01mm
Laser Marking Machine Min.Character Size:
≥0.2mm
Laser Marking Machine Wavelength:
1064nm
Laser Marking Machine Supply Voltage:
220v/50HZ
Supply Ability
Supply Ability:
50 Set/Sets per Week
Packaging & Delivery
Packaging Details
1. Outside Package: Standard export wooden cases. 2. Inner Package: Stretch film.
Port
Shanghai
Lead Time :
Quantity(Sets) 1 - 48 >48
Est. Time(days) 10 To be negotiated
Our Company

Established in 1998, CH Laser is one of the pioneers who specialized in developing LASER equipment in China, including laser marking, laser cutting and laser welding machine.
80% of staff are technicians, and 30% of them are senior technicians; CH laser has been cooperating with a couple of colleages and institutes, we have achieved more than 50 patent rights.

CH laser attended many exhibitions, and won many orders and great reputation.

Our laser marking machines, laser cutting machines, laser welding machines and laser cleaning machines attracted lots of customers from home and abroad.

We not only provide standard productions,but also provide whole solutions for different demands from different customers
Product Description

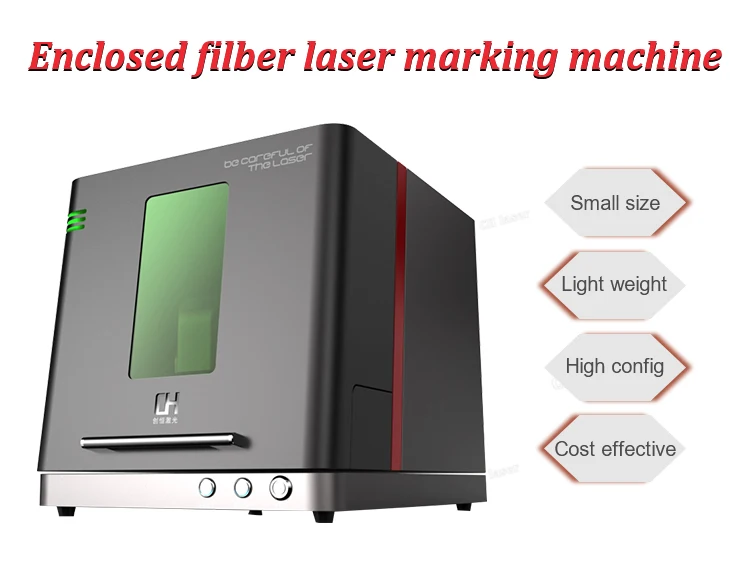

This enclosed fiber laser marking machine has no consumables. It's more high efficiency, long service life and maintenance than traditional laser marking machine. It's available for marking/printing/coding/engraving on many type of metal materials and non-metal materials with different design text.

1.parameter

Model
Q100-20W
Q100-30W
Q100-50W
Max.Laser power
20W
30W
50W
Laser wavelength
1064nm
1064nm
1064nm
Laser repetition frequency
≤30KHZ
≤30KHZ
≤30KHZ
Adjustable marking area
100mm*100mm /170mm*170mm
Marking depth
0.01-0.5mm
≥0.8mm
≥0.8mm
Marking linear speed
≤7000mm/s
≤7000mm/s
≤7000mm/s
Min.linear width
0.01mm
0.01mm
0.01mm
Repetition accuracy
0.01mm
±0.01mm
±0.01mm
Supply voltage
220V / 50HZ
220V / 50HZ
220V / 50HZ

2. Function
Fiber laser marking machine is used to engraving / marking / Coding / printing on many type of metal material and some non metallic material with different design text , symbol , pattern , bar code , 2D code , serial number, and suitable for online engraving .


3. Application Industry
Electrical -- Engineering and Electrical part and component
Mobile -- ( Cover, battery, keyboard , I Phone Case )
Jewelry -- (Ring , pedeant , bracelet ) , eyeglass , clocks and craft
Building materials , PVC pipe, Car motor car spare part , Insturments and meters and cutting tool
Plastic -- plastic case , aviation and aerospace,
Military product -- hardware fitting and accessory , sanitary appliance
Food and beverage -- Medicine package and medical instrument , solar PV industry

4.Available materials
--Many type of metals:
Gold,Silver,Stainless Steel,Copper,Aluminum,chrome Brass,etc
--Alloy and metal oxides:
Anodized Aluminum
--Some non-metallic materials & Special surface treatment:
silicon wafer,ceramics,plastic,rubber,epoxy resin,ABS,Printing ink,Plating,Spraying,Coating film

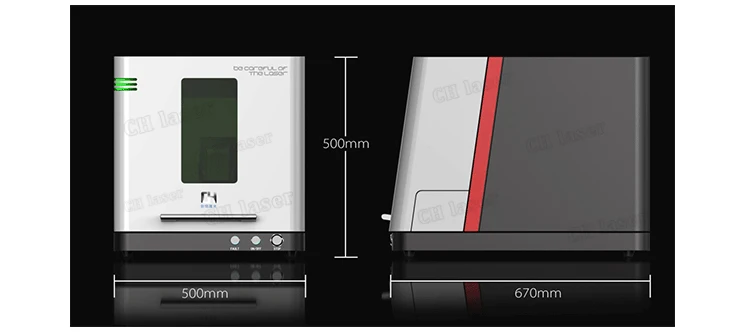

5.Dimension

Main Products

C Shape fiber laser marking machine

Portable fiber laser  marking machine

Enclosed fiber laser marking machine

6040/6060 laser marking machine

Fiber laser welding machine

Fiber laser cleaning machine

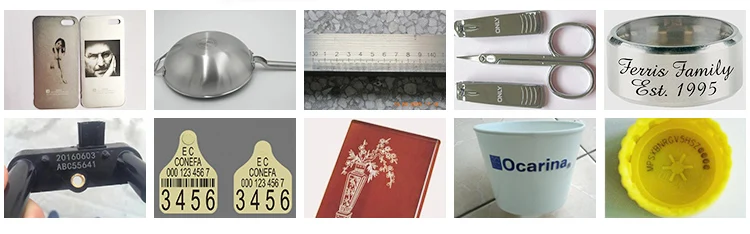

Marking Samples
Product Type
Fiber laser marking machine


Marking Materials
Both metals and some non-metals
Metals: carbon steel/mild steel, stainless steel, aluminum, copper, magnesium, zinc; rare metal and alloy steel (gold, silver, titanium, etc.); special surface treatment (aluminum anodized, plating surface, surface oxygen breaking of aluminum and magnesium alloy).

Applied Industries
Electronic components, IC, electrical appliances, mobile phones, plastic buttons, color paper, food packaging, clocks and watches, molds, gaskets and seals, bearing, auto parts, hardware, tools, building materials, PVC tubes, etc.

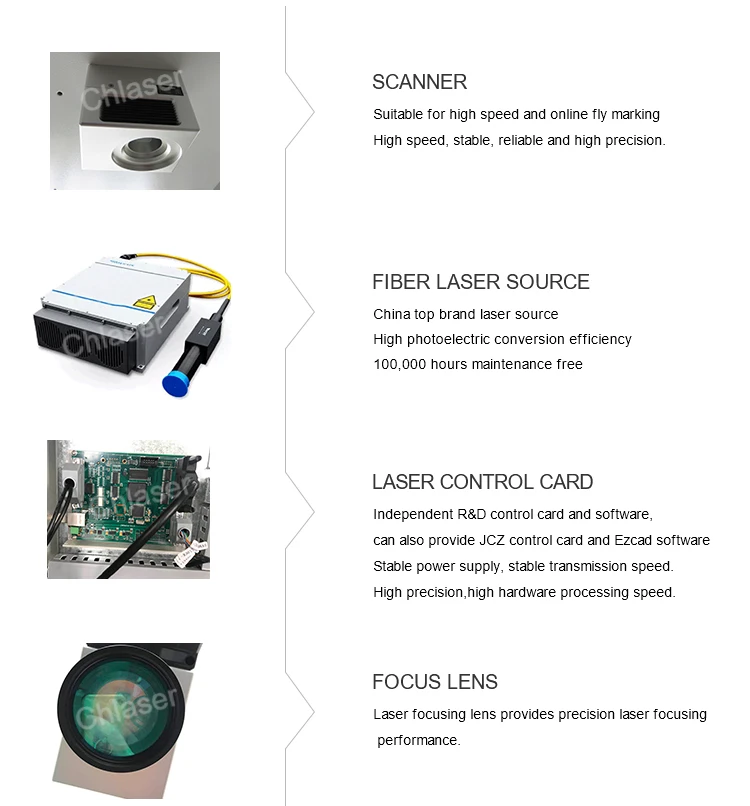

Detailed Images
Packing & Delivery

Packing Details
We have 3 layers package, for the outside, we adopt wood craft case.
In the middle,the machine is covered by the foam from shaking.
In the inside,the machine is covered by thickening plastic bag for waterproof.
Delivery Details
5-7 days after payment.
Our service

Per-service and in-sale service

1. We provide 24h consulting service,  samples process experiment, equipment selection, training the engineers.

2.After the acceptance check by the buyer, we provide free training and maintenance guidance.

3.User-friendly English manual and video for the  machine using and maintaining.

After-service

1.Our company offered two years warranty and maintenance for the buyer.
2.We provide 24h after-sales for the buyer and contact us by E-mail, wtatsapp, phone directly.
3. If your machine has big problem at any time, our engineers will arrive to debug and fixed.
